Stratomaster Ultra Instrument Panels

Quantity in Basket: none
Code: VSU3900
Price: $1,295.00

Shipping Weight: 7.20 pounds

Choose Package:
CHT probes:

EGT probe/clamp kit

Water/oil temp sender

Precision water/oil temp sender

Fuel flow sensor

GT-1 Geartooth Rotor RPM sensor

Download keyring device/pc cable
Ultra HL/HX Options:

Quantity:


STRATOMASTER
ULTRA INSTRUMENT PANELS

For your ultralight, experimental, homebuilt or sport aircraft!

The Stratomaster Ultra is the world's finest computerized instrument for light sport aircraft. There is nothing competitive in quality, functionality or price. The system combines all necessary flight and engine readouts in a graphical dial and graph format in an easy-to-read presentation. Because the system is software-based, it provides many user options for customization. The Stratomaster Ultra is easily adaptable to almost any engine.

Providing a multichannel EMS (Engine Monitoring System) as standard, the Ultra gives you the ability to closely monitor and to optimize engine performance. The EMS is highly configurable in true Stratomaster fashion and is therefore suitable for a wide range of engines, from small two-stokes to large four strokes. Connect just about anything you like, from Rotax to Hirth to VW to Jabiru to 2SI to Subaru, etc. You are covered!

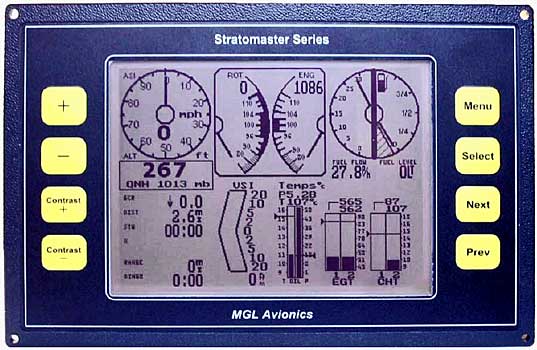

Featured here is the rotorcraft version of the 4 Ultra models: the Ultra RL. This unit is especially for helicopters and gyroplanes, incorporating a rotor RPM tach in the display.

Ultra RL—for helicopters & gyroplanes:  same as Ultra L (below), but with aligned rotor-Engine RPM



3 additional models of Ultra are available:


Ultra L:
Standard instrument with 4 channels total EGT/CHT (+ 2 extra NTC CHT)

Stratomaster ULTRA L Package (4 EGT/CHT): $1,295

Ultra X:
Same as above, but with 8 channels total EGT/CHT

Stratomaster ULTRA X Package (8 EGT/CHT): $1,295

Ultra HL and HX:
Ultra with attitude/heading information with either 4 or 8 channels EGT/CHT (L or X model). Attitude/heading information dependant on sensors purchased.

Stratomaster ULTRA HL Package (4 EGT/CHT): $1,295

Stratomaster ULTRA HX Package (8 EGT/CHT): $1,295




STRATOMASTER ULTRA: SUMMARY OF FUNCTIONS:


FLIGHT INFORMATION

  • ASI
  • Altitude (encoding - may require optional CNV-AT, depending on transponder)
  • VSI (digital and graphical)
  • Flight Duration
  • Glide Ratio
  • Climb Ratio
  • Attitude/heading options (Ultra H only)

ADDITIONAL FUNCTIONS

  • True Airspeed (TAS)
  • Density Altimeter
  • Takeoff Length Measurement
  • Air Distance Made Good
  • Automatic Flight Detection
  • Stop Watch
  • Maintenance Counter
  • Fuel Level Display
  • Fuel Flow Display
  • Time of Day
  • Flight Time
  • Flight Log
  • Preflight Checklist
  • Voltmeter
  • Barometer
  • Air Distance Range Remaining
  • Bingo Fuel Time
  • Instructor Mode
  • Ambient Temperature

ENGINE INFORMATION (May require additional senders)

  • Exhaust Gas Temperature (EGT)
  • Cylinder Head Temperature (CHT)
  • Water Temperature
  • Oil Temperature
  • Oil Pressure
  • Engine RPM
  • Engine Hours
  • Rotor RPM (Ultra RL only)


STRATOMASTER ULTRA: DETAIL OF FUNCTIONS:


SYSTEM REQUIREMENTS

  • The Stratomaster Ultra can be used with any engine that generates 1 - 100 pulses per 10 revolutions. This includes all Rotax, HKS, Hirth, Subaru, Jabiru, etc.
  • The Stratomaster Ultra should be connected to the clean 12V or 24/28V electrical system of your aircraft.
  • Additional senders are needed for engine functions required

SIZE

Face: 202mm x 135mm (7.95" x 5.3")
Screen: 121mm x 91mm (4.75" x 3.6")
Panel cut out: 196mm x 122mm (7.7" x 4.8")
Mounting depth: 95mm (incl. wiring) (3.75")

WEIGHT

Display: 700g (24.7 ounces)
Engine Capture Module: 275g (9.7 ounces)

STRATOMASTER ULTRA: WARRANTY

The Stratomaster Ultra's electronic components are guaranteed for 12 months from date of purchase against faulty workmanship/defects. Defective parts will be replaced/repaired at manufacturers discretion.


WHY SHOULD I BUY THE STRATOMASTER ULTRA?

  • The most comprehensive graphical light sport aircraft glass cockpit solution available

  • Takes care of most flying and engine information functions

  • Has graphical display of all main flight and engine functions

  • Can be fitted to just about any sport aircraft engine

  • Has many extra software features for pilots, instructors and aircraft testers

  • Aircraft quality and accuracy

  • Much lighter than traditional analog instruments

  • Fits most ultralight panels

  • Cheaper than the equivalent analog instruments

  • Easy installation (capture module, mounted near engine, sends signal to display so senders do not have to extend to panel)

  • Excellent resistance to vibration and harsh operating conditions

  • 1-yr Guarantee against faulty workmanship/defects

  • Full installation manual with your instrument

  • Solid representation and reputation


AVAILABILITY:

While stock levels vary, nomally all items are in stock.

WHAT YOU GET:

  1. Stratomaster Ultra instrument.
  2. Stratomaster RDAC Engine Monitoring System (EMS)
  3. Remote temperature sensor (for ambient temperature).
  4. Ballast resistor for Ducati type ignition systems (rev counter).
  5. Calibration certificate.
  6. Manual.
  7. Set of socket head mounting bolts and lock nuts.

Optional parts excluded in the basic price:

  1. Fuel level sender. This can be obtained from your local auto parts store (resistive type).

  2. Suitable alarm panel mount pilot light.

  3. Suitable alarm buzzer. This can be used with the panel mount pilot light.

Senders for EMS are available from Vortech (see Price List, below):

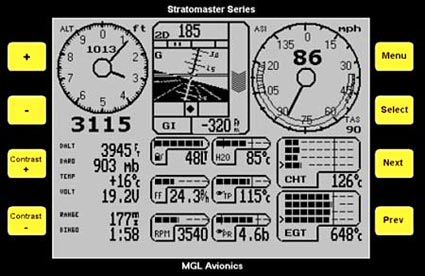

Stratomaster Ultra HX with attitude (horizon) and compass info

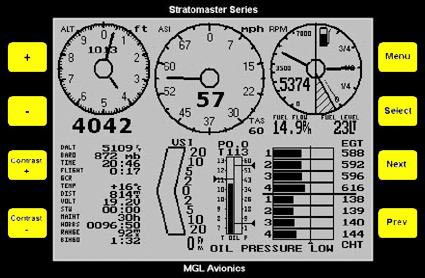

Stratomaster Ultra X with 8 channels EGT/CHT

ORDER ONLINE:


Price List

Stratomaster Ultra:

Stratomaster ULTRA L Package (4 EGT/CHT): $1,295
Stratomaster ULTRA X Package (8 EGT/CHT): $1,295

Stratomaster Ultra for Rotorcraft:

Stratomaster ULTRA RL Package (w Rotor RPM): $1,295

Stratomaster Ultra H with attitude (horizon) and heading:

Stratomaster ULTRA HL Package (4 EGT/CHT): $1,295
Stratomaster ULTRA HX Package (8 EGT/CHT): $1,295
Sensor Package for Ultra H

Optional Senders for engine functions (all Ultras):

EGT Probe + clamp kit, M8x1 thread, 316 stainless steel: $40
CHT Probes $26
Water Temp Sender, 1/8" NPT thread: $10
Precision Water/Oil Temp Sender, 1/8" NPT: $22
Fuel Flow Sensor: $145
GT-1 Geartooth sensor for Rotor RPM: $85

Optional Accessories:

Download Keyring Device with Airtalk/PC cable: $95
