AIRFRAME / MAIN & TAIL ROTOR SYSTEMS / ENGINE
Vortech offers components
for those building a G1-XL single-seat helicopter.
The G1-XL is a scaled-up and vastly enhanced version of the
original G1
ultralight helicopter. The G1-XL would qualify in the license-free Ultralight
category.
The parts sold
for the G1-XL incorporate major improvements over the
original design. The changes make the G1-XL an altogether
different aircraft than the original G-1.
For example, a full pitch, cyclic main rotorhead
and a positive-control tail-rotor mechanism. Plus, the
airframe dimensions have been scaled up about 30% for better
performance. Vortech does not offer a complete G1-XL
kit—only the listed components.

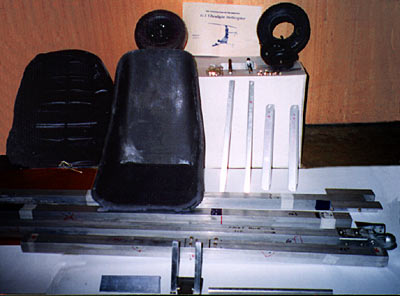

Left: G1-XL kit components (wheel version)

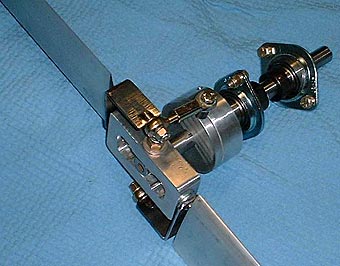

A belt-driven, full-pitch tailrotor mechanism (rotorblades not included)
PRICE: $3,495.00 (+ $70 shipping U.S.)
G1-XL Tail-Rotor Hub
The G1-XL Airframe (wheel version)
Rotor Hub with pitch bearings, including blade grips. For 1˝" rotor shaft. Pitch linkage and swash plate are not included.
PRICE: $4,295.00 (+ $95 shipping U.S.)
G1-XL Swash Plate Mechanism
Swash plate for 1˝" rotor shaft, minus hub and pitch
linkage.
PRICE: $2,500 (+ $90 shipping U.S.)
Complete
G1-XL
Rotor Head
Complete main rotor hub/head and swash plate mechanisms
combining the parts described above, and including the pitch
linkage.
PRICE: $5,995.00 (+ $150 crating/shipping U.S.)
Airframe is pre-drilled, with double-strength mast and includes seat with upholstered cover, skids and tail section. Options: wheels (5" pneumatic) + a nose skid and trailer hitch (add $195).
PRICE: $2,595.00 (add $45 crating)

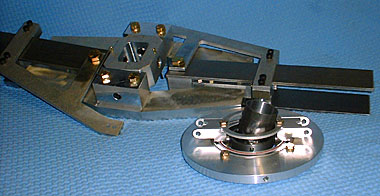

G1-XL Main Rotor Hub & Swashplate

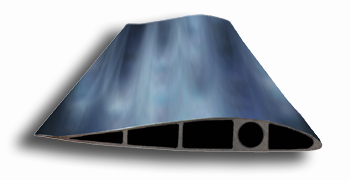

G1-XL Rotorblades: Aluminum
Complete set of 7" x 8' chord main and 2.75" x 14" chord tail rotorblades.
PRICE: $2,685.00 (+ $145 crating)
See other Vortech rotorblades at www.vortechinternational.com
Kawasaki 440 engineKawasaki 440-A Engine: 43hp
A new, lightweight 43hp engine, complete.
PRICE: $2,250.00 (+ $95 shipping U.S.)
