SPECIAL ANNOUNCEMENT!
The popular Sparrow & Falcon gyroplanes are now being manufactured by Phoenix Rotorcraft, LLC.
Innovative new designs & outstanding enhancements will be available. Our new kits will conform to
the highest industry standards of performance, safety & reliability. Exciting never-before-available
features will be incorporated in our kits or will be available as options. Please contact us for details.

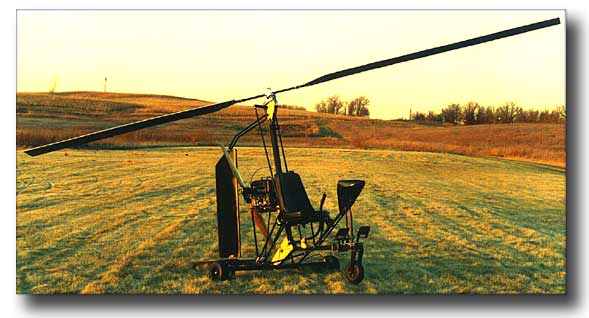

Sparrow Ultralight gyroplane

 The  SPARROW
A high-performance lightweight upgradeable gyroplane

The Sparrow (above) is a lightweight version of it’s brother, the RH-1 Falcon and can, in fact, be upgraded to a Falcon at any time.  Pictured to the right is a Rotax 503-powered Sparrow. Hirth is the engine of choice; however, either one performs well. Coupled with the tall-tail, centerline-thrust configuration, the Sparrow is one of the most user friendly, stable, yet safe machines available. Uses a 23 ft. or 24 ft. rotor disk.

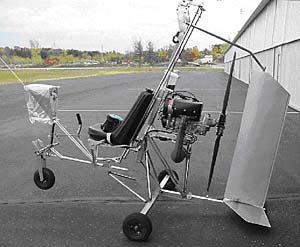

Sparrow Ultralight

Sparrow Specifications

Min. Speed

10 mph
Cruise Speed  60 mph
Max. Speed 80 mph
Empty Weight  approx. 254 lbs.
Useful Load     up to 240 lbs.
Gross Weight  500 lbs.
Width   5 ft. 4 in.
Height  7 ft.
Length   9 ft.

The Sparrow Kit

Bolt together, all aluminum frame. Components machined on CNC. Contains all AN hardware, cables, wheels, engine mount, rotor head, pod, tall tail & horizontal stabilizer, joystick and more.

Price: Please contact us for current pricing!
(Engine, rotors, prop, seat tank & instruments will be sold extra)

Available options: prerotator,  Hirth engine. Other engines may be used, and whether it's a Hirth, Rotax or Subaru we can provide the mounts to fit.

 The  RH-1 FALCON
For those demanding the highest performance

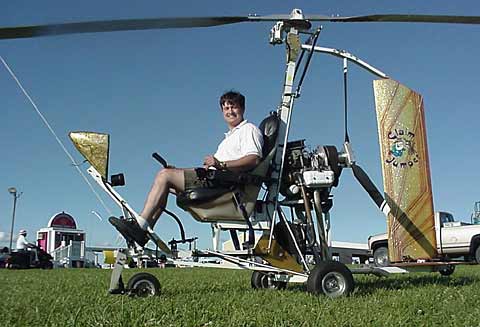

The Sparrow's souped-up brother is the RH-1 Falcon. Pictured below are the enclosed and open-frame versions of the Falcon. May be powered by as little as 52 hp (such as the Rotax 503) or, for better performance, one of the higher-power Hirth engines listed in the chart below. Tall-tail centerline-thrust configuration provides outstanding stability. Rotors used are the 26 ft. to 28 ft. rotor disk.  Without using a prerotator, an experienced pilot can take off in about 400 to 500 ft.. With a prerotator (sold as an option) the take-off roll can be as little as 100 feet.

RH1 Falcon--enclosed

The RH-1 Falcon Kit

Bolt together, all-aluminum frame. Components machined on CNC. Contains all AN hardware, cables, wheels, engine mount, rotor head, pod, tall tail & horizontal stabilizer, joystick and more.

Price: Please contact us for current pricing!
(Engine, rotors, prop, seat tank & instruments will be sold extra)

Available options: full enclosure, Wunderlich belt-coupled or Falcon Industries, Inc. electric prerotator,  Hirth engine. Other engines may be used, and whether it's a Hirth, Rotax or Subaru we can provide the mounts to fit.

RH-1 Specifications

Min. Speed

10 mph
Cruise Speed  60-70 mph
Max. Speed 95 mph
Empty Weight  475 lbs.
Useful Load     up to 300 lbs.
Gross Weight  775 lbs.
Width   6 ft. 8 in.
Height  8 ft. 2 in.
Length   9 ft.

ROTOR SYSTEMS FOR YOUR GYROPLANE

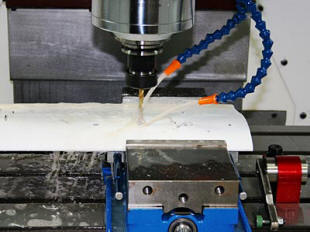

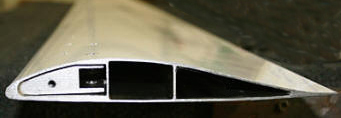

Our line of Falcon Industries, Inc. blades have been manufactured for the experimental and ultralight rotorcraft  market for over 30 years.  In those years there has not been one known blade failure.  We currently offer two styles of rotor systems: our extruded rotor, available up to a 30 ft rotor disk; or for our ultralight users we still offer our famous hollow spar, light-weight bonded and riveted rotor system, available up to 24 ft rotor disk.  All systems use the 8-H-12 airfoil for it's excellent autorotation abilities and great lift, and come complete with our variable-pitch hub bars. All hubs are the industry standard (will fit any head in the industry) of 2.5" wide and have the cone angle milled onto the bar.  Also, each hub has our EZ Trac teeter block and Chord Line adjustment screw making it a cinch to dial in your rotors*.  All systems come balanced, pitched and  ready to put together and go!

SPECIAL: 10% discount for rotors purchased with any above gyroplane!

*  in most cases systems must be tracked to each individual machine.


RH Part Number Disk Span Price
RH-220 22' Rotor Disk $1095
RH-230 23' Rotor Disk $1195
RH-240 24' Rotor Disk $1295
RH-250 25' Rotor Disk $1395
RH-260 26' Rotor Disk $1495
RH-270 27' Rotor Disk $1595
RH-280 28' Rotor Disk $1695
RH-290 29' Rotor Disk $1795
RH-300 30' Rotor Disk $1995
RH-310 31' Rotor Disk $2195
Custom Lengths And Hubs Available Call!
Add $80.00 crating fee

 Please also see a full line of rotorblades at Vortech International, Inc.

TO ORDER . . .
Please go directly to Order Form



GYROPLANE PARTS & OPTIONS

Phoenix Rotorcraft, LLC will carry a full line of gyroplane and helicopter rotorheads and rotorhubs, including custom parts, for virtually any homebuilt rotorcraft. Please contact us for details.

HIRTH ENGINE SYSTEMS

Hirth engines have become recognized as the finest available for ultralight and experimental aircraft plus a wide variety of other applications. Although the initial cost of a Hirth engine may make it appear more expensive than competing engines, the extremely high TBO of 1,000 hours, the full year warranty, the superior reliability and the lower operating RPM actually make Hirth engines a far greater value than almost any of its competitors.

A superior torque curve at substantially lower RPMs is why the Hirths outperform other brands by a wide margin. Unlike most engines that were designed for land use, then adapted for aircraft, Hirth engines were specifically designed for aircraft. Combining Nikasil cylinders and Hyper-Eutectic aluminum pistons (standard features), the Hirth engines are highly seizure resistant. Chrom-moly steel crankshafts give long life and virtually eliminate failures. Most engines on the market have steel sleeve cylinders. Although less expensive than Nikasil, steel sleeves cannot dissipate heat as efficiently as aluminum and expand at a slower rate. As the heat in a steel sleeve cylinder engine increases the piston expands faster than the cylinder wall, steadily decreasing piston clearance. To compensate, engines using steel sleeve cylinders must run at lower temperatures. Hirth's cylinders are aluminum alloy and have no sleeves. The cylinder walls have been treated with the patented Nikasil process. Nikasil coated cylinders are more durable than steel sleeves. Because the cylinders are an aluminum alloy, their expansion properties as well as their excellent thermal conductivity are virtually unchanged. This design allows heat to be dissipated quickly and efficiently. The piston is also made from an aluminum alloy, but one that expands slightly less than the Nikasil cylinder. This combination of cylinder treatment and matched cylinder and piston materials creates an extremely seize-resistant environment. This is also why Hirth engines can handle cylinder head temperatures of over 600 degrees F. without failure. Although the Nikasil process is expensive, the increase in the engine's lifespan, performance and reliability more than offset the cost.

Hirth engine Hirth Model / HP Description Price (all engines are discounted)
2702 / 40hp Fan-cooled, recoil start $3,340
2703 / 55hp Dual carb, recoil start $4,275
3202 / 55hp Dual carb, recoil start $4,275
3203 / 65hp Dual carb, recoil start $4,985
3503 / 70hp Dual carb, recoil start $5,725
3701S / 100 hp Fuel-injected, electric start $9,400
F-30 / 80hp Fan-cooled, electric start $8,600
F-30 / 80hp Free air, electric start $7,430
F-30 / 110hp Free air, electric start $8,155
F-33 / 28hp Recoil start $2,490
F-23 / 50hp Slide carb, electric start $4,225
 Hirth Engine options: electric starter, gearbox reduction units, electronic fuel injection. Please inquire.

Prices and designs subject to change without notice


CONTACT INFO:  For more information on our new line of kits, please phone:

Sales:  410-668-2757
Manufacturing:  919-340-0038
