HRH Plans & Video

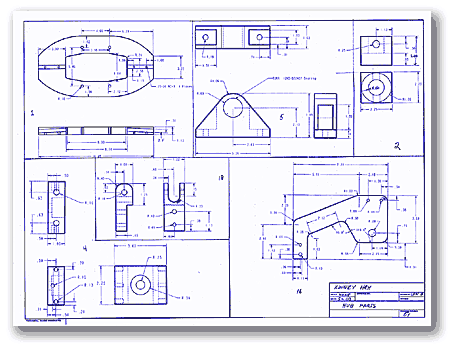

Sample from the HRH PlansPlease scroll down
for more info on the HRH Plans & Video and for ordering info. |
The HRH prints are clearly drawn & detailed. They are available
in a full-size 18" X 24" blueprint
format, or a reduced 11" X 17" format.
NOTE:
Although the pages in both the full-size and reduced-size
manuals are the same, the reduced-size drawings are not to scale
and so are not recommended for actual fabrication of an HRH.
IMPORTANT:
The HRH plans do not detail the construction of the tail
rotor mechanism and final assembly of the main rotor head;
the creator of the plans intended for the builder to buy those
components complete and ready-to-mount from companies
such as RotorWay (now Rotor X), RotorWay-Rework, etc. |
|
The HRH Video
provides many close-ups of the helicopter's components with an overview by
Bob Kinney, creator of the HRH, as well as extensive flight footage. Not to be missed! |
 |
PRICING
Special introductory
prices:
HRH Construction Manual—full-size: $225
HRH Construction Manual—reduced-size: $125
HRH Color Video (40 minutes): $30
— Or SAVE on plans PLUS video—
HRH Video + Plans—full-size : $245
HRH Video + Plans—reduced-size : $145
— Please add
postage to above prices per
Order Form — |
|
HOW TO ORDER: |
With a credit card (Visa,
MasterCard, American Express), you can SAFELY order 24 hours a day:
Or, you can MAIL a check, money
order, or credit card number with expiration date and 3-digit
security code to:
|
|
|
Questions? Email us at:
vortechinc88@gmail.com
|
|
|
The
HRH has won such prestigious awards as Sun 'n Fun's "Outstanding New
Design" (2002) and EAA's East Coast Regional Fly in's "Best
Rotorcraft" (2001)
|
|
Vortech offers a
set of plans for building the HRH in 2 affordable formats:
full-size and reduced-size. |
|
