THE ORIGINAL CONSTRUCTION PRINTS FOR THE
HIGHLY POPULAR 2-SEAT HOMEBUILT HELICOPTER!



The Scorpion-133
2-seat homebuilt helicopter


Complete construction prints & manuals. Package consists of  2 construction, data & flight manuals and the 13 original
large-size prints for building this extremely popular 2-seater.  The prints specify the materials and their dimensions.
Also available: flight demo video
  Scorpion 133
     Scorpion 133 flying            Specifications of the Scorpion-133
Passengers: 2;  Length: 22';  Height: 7.5';  Width (cab): 4';  Rotor dia: 24';  Empty weight: 690 lbs.;  Gross weight: 1,330 lbs.;
Payload:
640 lbs.;  Disc loading: 2.49 lbs/sf;  Engine type/hp: RW133 or similar water-cooled 4 cycle/135 hp;  Range: 150 miles;
Speed (max):
100 mph;  Speed (cruise): 75 mph;  Service ceiling: 10,000';  Rate of climb: 1,000 ft/min

Complete Scorpion-133 Plans Package (13 large fold-out prints + construction & flight manuals):
Only $135
(+post.)

Scorpion-133 flight-demo video: $23 (+post.)
SPECIAL: Scorpion-133 Plans + video: $148
(+post.)

Place your order for the Scorpion-133 Plans and Manuals


bluebar
Also find used Scorpions at Vortech's "HOT SPECIALS!"
bluebar
Outstanding rotor blades for your Scorpion helicopter!
bluebar
See engines for your Scorpion
here
bluebar




New! Instruments & avionics for your homebuilt!



CONSTRUCTION PRINTS AND MANUALS FOR THE SINGLE-SEAT SCORPION!

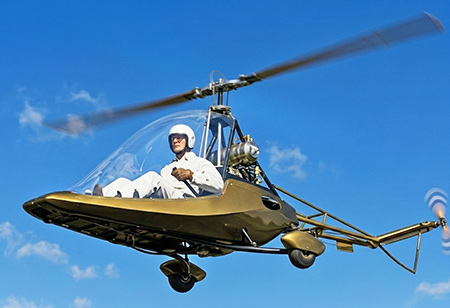

Scorpion I in flight   The Scorpion-I
Single-seat homebuilt helicopter


Complete construction blueprints & manuals. Package consists of  7 individual blueprints,
the Construction Manual, and the Set-up & Flight Manual for the original single-seat
Scorpion,
one of the pioneering homebuilt designs. Now, decades later, this delightful craft
still retains its popularity, as can be seen from the number that turn up at airshows
as well as in articles in magazines and online.

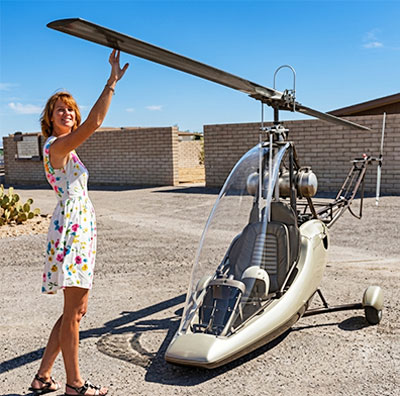

Scorpion I on ground
Specifications of the Scorpion-I
Passengers: 1;  Length: 17';  Height: 6';  Width (cab): 2';  Rotor dia: 19';  Empty weight: 375 lbs.;  Gross weight: 700+ lbs.;  Payload: 425+ lbs.;  Disc loading: 2.2 lbs/sf;  Engine hp: 85 to 115 hp;  Range: 160 miles;  Speed (max): 95 mph;  Speed (cruise): 65 mph;  Service ceiling: 12,000';  Rate of climb: 900 ft/min


Complete Scorpion-I Plans Package (set of large blueprints + construction & flight manuals):
Only $95 (+post.)

bluebar
Also available: RW-133 Engine Manual
The complete manual for the engine used in the original Scorpion-133 helicopter.
Details the assembly, maintenance and installation of this engine

Only $34 (+post.)

bluebar



HOW TO ORDER:

With a credit card (Visa, Mastercard, American Express), you can order 24 hours a day:

  • computerONLINE, via secure order form
  • Or, you can MAIL a check, money order, or credit card number with expiration date and 3-digit security code to:



    See one and two-seat
    Scoprions for sale on
    Vortech's Hot Specials!


    VORTECH, Inc., Box 511-W, Fallston, MD 21047

    Questions: email us at vortechinc88@gmail.com
