For your homebuilt helicopter
project:

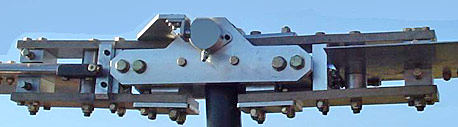

ROTORHEAD for
ONE- or TWO-SEAT
HELICOPTERS
DESCRIPTION:
Building or re-building a single-
or dual-place helicopter? Here is an affordable rotorhead for
your project. This rotorhead will provide full collective and
cyclic control and will handle a total gross weight as high as
2,500 lbs. The head is attached to your control system via
push-pull rods through a swash plate; the swash plate may be one
already included in your homebuilt or can be purchased in
addition to the rotorhead. The rotorhead's blade grips can
accept blades up to 1.5" thick; it can mount to a shaft as thick
as 2". The head is made of aircraft-grade materials,
including 2024-T3 aluminum and 4130 chromoly steel. It is 27"
long (from tip to tip of blade grips), 4.5" high and 3.5" wide.
It is sold fully assembled and is guaranteed against any
manufacturing defects.
PRICE:
Only $1,995
+ shipping for rotorhead. Add $800 for a swashplate.
CONTACT:
Phone
410-668-2757 from 1pm-7pm EST weekdays, or leave message. To
write us,
please use the Form below.
