For your experimental helicopter:
Rotorblades for RotorWay & other homebuilt helicopters

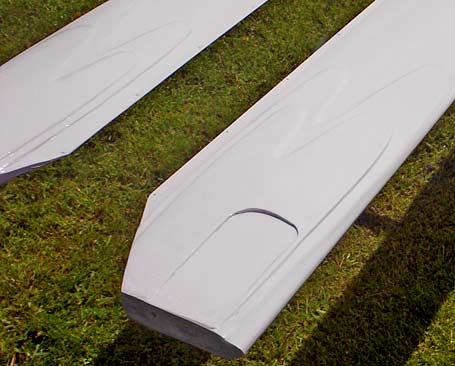

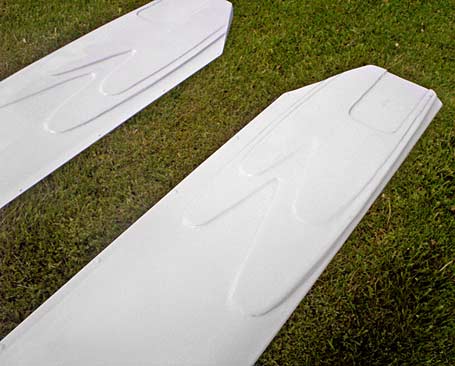

Photos above & below: root
end of blades with doublers and custom rectangular mounting
section. Blades customized for your hub.

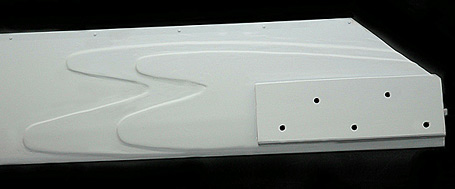

Above: root end of blades with doublers & mounting block
(primed)

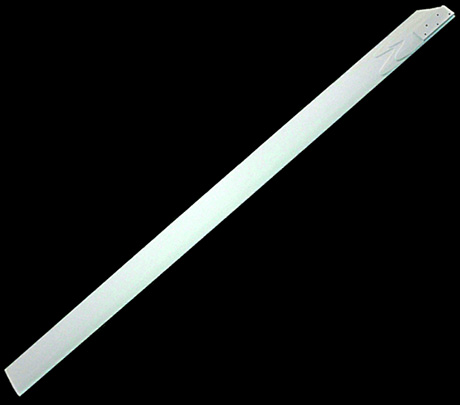

Below:
full-length
blade (primed)

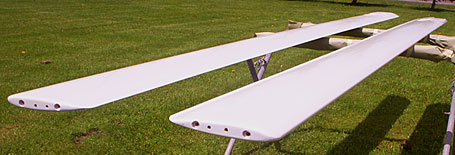

Above (2 pix):

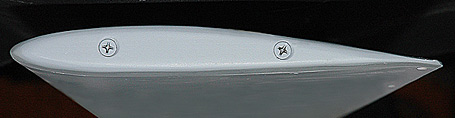

tip end of blade with tip-cap
mouted
Below:

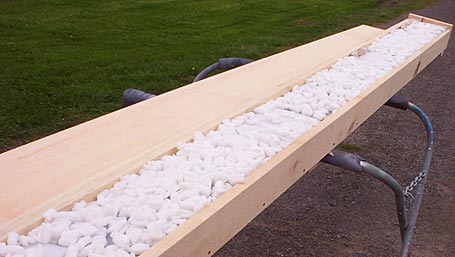

blades packed in crate for shipment

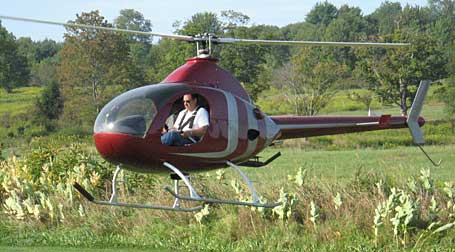

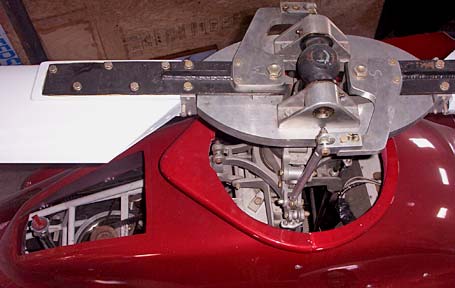

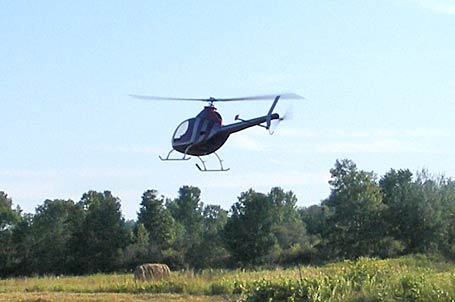

Below:
blades in use on a RotorWay Exec

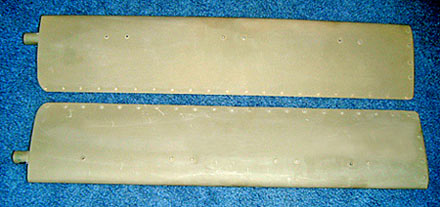

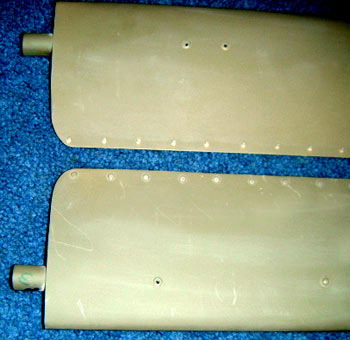

Exec tailblades
DESCRIPTION:
ROTORBLADES for your
RotorWay Exec, Scorpion or other homebuilt design. They are
similar to the Exec blades. These quality blades are formed from
2024-T3 aircraft-grade aluminum and are formed around an
extruded aluminum leading edge. The airfoil is a modified
"high-lift" NACA0012. The aluminum skin is bonded with
structural adhesive and cherry rivets. Blade chord is 8" and
weight is 2.9 lbs./foot.
Lower photos show these blades in actual use on a RotorWay
Exec.
Blades are available in 3 forms
per set of 2 blades: unfinished, finished and ready-to-mount:
Unfinished set includes
a set of 2 blades (primered) with weighted tip caps, fiberglass
doublers and blocks (uninstalled).
Finished set includes weighted tip caps, fiberglass
doublers and blocks (already installed) cut to proper size for
blade-mounting plates. The blades are pre-balanced and primered, ready to be painted.
Ready-to-mount set a complete, fully finished set
that has also been fully balanced and painted; they are ready for
blade plates to mount to hub. Length to suit your design at 8"
chord.
NOW

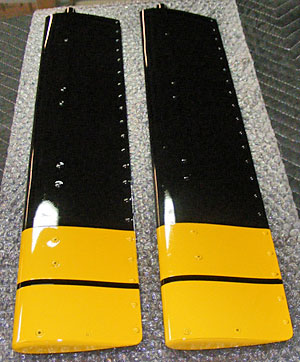

AVAILABLE: A full set of
tail rotorblades specifically for RotorWay Exec helicopters.
Includes the tip caps. Mounting the blades only requires drilling a hole in the root
end to match the hole in the hub. They are primed and ready to
be painted.
PRICING (per sets of 2
blades):
$2,595 for
full set, unfinished
$3,250 for
finished set
$3,850 for ready to mount
set
(Add $145 crating cost
per set. Shipping: please inquire)
PRICE FOR
EXEC TAIL BLADES (per full set of 2
blades):
$595 per
set with tip caps (brand new)
(Add $35 shipping
in the U.S. or $90 foreign)
Also
available
separately:
Rotorblade
mounting plates. $395/set
Fiberglass doubler:
$350 for a set of 8 for 2 rotorblades
Fiberglass doublers + wood
blocks: $445
Wood blocks alone for 2
blades: $95.
ORDERING:
Please use our
online
Rotorblade Order Form
