ROTOR SYSTEMS FOR YOUR GYROPLANE

The world's finest gyroplane rotorblades! Our line of carbon blades are designed for LSA/experimental and ultralight  gyroplanes. Our blades can be adapted to almost every gyroplane model. With our carbon blades, you get the highest production quality and no lifetime limit! All blades are covered by polyurethane paints and gel coated. No comparable value exists in the industry!

Features:
- Completely formed of aviation-approved composite carbon fabrics and epoxy resins
- Enforced root (4 aluminium bushings)
- Aerodynamic root
- Unlimited service life + a 5-year warranty
- Gel coated outer layer for blade protection
- Blades come fully factory balanced, with steel rods inforporated for chordwise and spanwise balance
- Color choice available for tip stripes: red, orange, blue (light or dark), green (light or dark), purple, black















GYROPLANE ROTOR BLADES & PARTS—PRICING

ITEM Price* (USD)
• Set of 2 carbon-composite asymmetrical NACA 8H12 rotor blades (8.5" chord) with hub bar $3,560/set*
Rotor head with pre-rotation system and rotor brake $2,035*
Rotor head towers  (used with the RAF-2000, MTO Sport, Cavalon, Calidus and some other models) $565*

 *A final cost with crating and shipping will be quoted per order. Specify desired blade length.

Receive a 5% discount when you order 2 sets of rotor blades!
Prices and designs subjecct to change without notice





TECHNICAL DETAILS

100% composite carbon fiber
   Carbon composite fiber makes our blades light, durable and stiff. Plus, they are
    further protected with an outer gel coat.

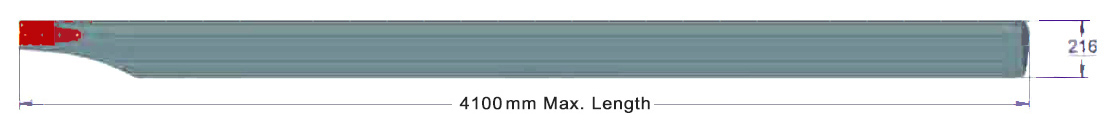

Maximum blade length 13.5 ft. (4.10 m)
   The maximum length of 13.5 ft. per blade can be shorter per your needs
Choice of rotor diameter
    We can provide a rotor diameter for virtually every gyroplane
Institute of Aviation certificates for blades and hub bar
    All blades were tested at the Institute of Aviation in Europe

Chord: 8.5 in. (216 mm)
    The blade chord is 8.5 in. over the entire blade length
Aluminum Hub Bar
    Our hub bar enables blade tracking and centering of the hub bar in the rotor head,
     plus blade-pitch adjustment
Aviation certifiates for materials used
    All composite materials and resins used in our blades have aviation certificates
Weight per blade at full length of 13.5 ft. (4.10 m)
    Each blade weighs only 36 lbs (16 kg), or about 2.7 lbs./ft.

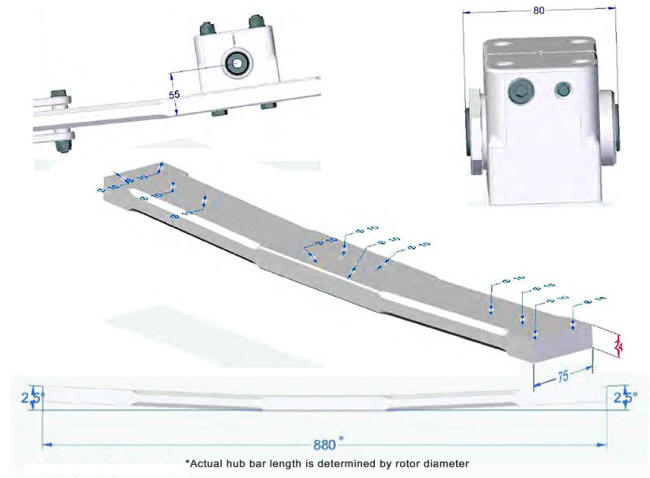

All below dimension are in millimeters (1 mm = 0.0394 in. / 1 in. = 25.4 mm)




A couple of the many gyroplanes flying the carbon composite rotor blades


TO ORDER...

Go to our Form via below link, fill in your name and
contact information and what you would like to order.
We will contact you to confirm your cost and
to provide payment instructions.

Click here to submit your info and order request

       Prices and designs subject to change without notice
