Interested in these blades?
Please contact us: By phone at 410-668-2757 from 3pm-8pm EST weekdays, or leave message. Or write us using the Form below.





































For your helicopter project, a special sale:
Carbon-composite rotor blades for experimental helicopters


Helicopter blades

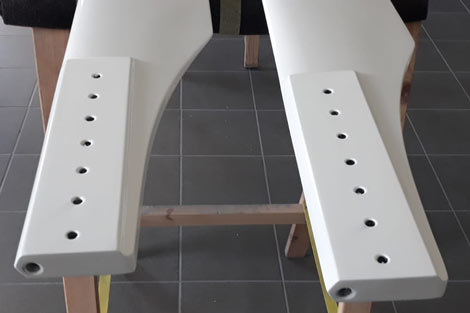

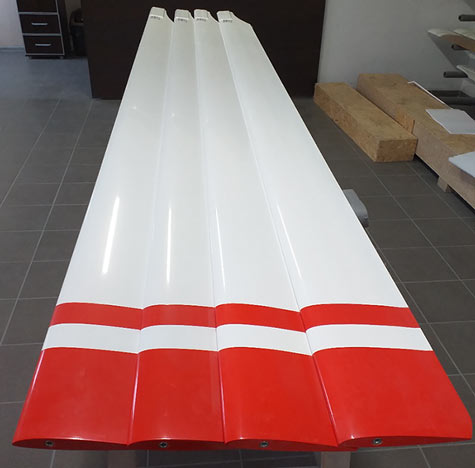

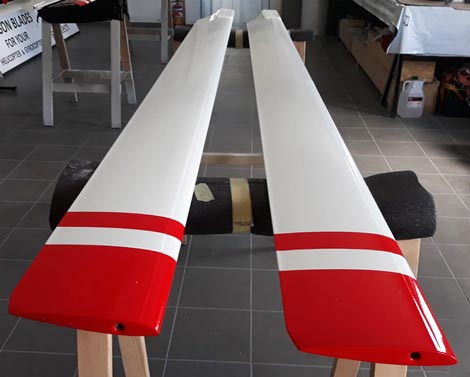

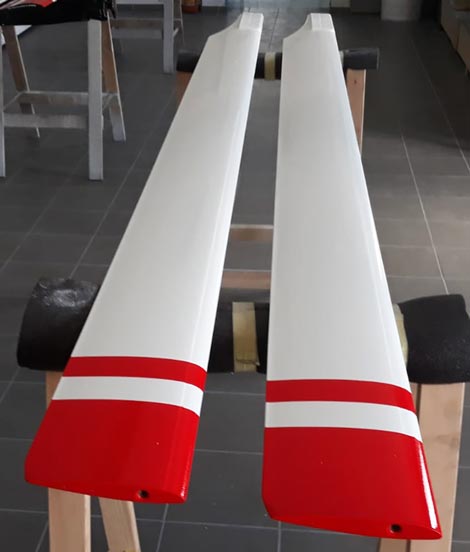

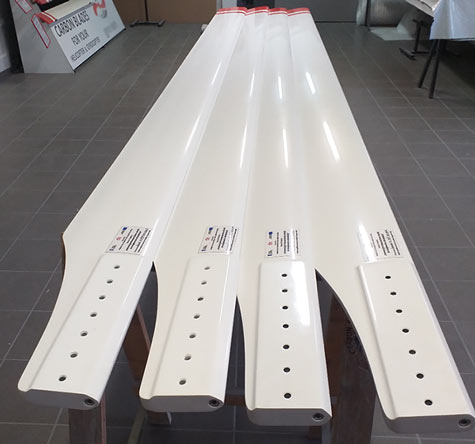

Above photos show sets of brand new, carbon-composite rotor blades for your helicopter. The rotor blades have a high-lift 23012 airfoil and a counter-clockwise rotation.



DESCRIPTION:

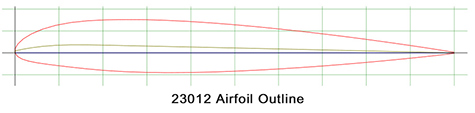

CARBON-COMPOSITE ROTOR BLADES for your helicopter project. These blades have a high-lift asymmetrical (23012) airfoil with a 5.5° geometric twist; they have a 7" (180mm) chord, a root thickness of 1.1" (28mm), and are each 9.2ft. (2.8m) long, but they can be shortened if required. Weight per blade is 18.4 lbs (8.4kg). They have a linear 7-hole mounting pattern. Rotation is counter-clockwise. They are formed of carbon composite, are brand new and specially priced as shown below. They come with a 5-year warranty against manufacturing defects. One set is painted white with red stripes at the tips (see photos); the other 2 sets are raw carbon and can be painted other colors. Shipping cost is extra.



NOTE: Only 4 sets (2 blades per set) are available at this special price. See our general line of main and tail helicopter rotor blades here

PRICE Only $4,450 per set of 2 blades (usually $8,900/set—you save $4,450—a full 50%).

CONTACT:
Phone 410-668-2757 from 3pm-8pm EST weekdays, or leave message. To write us, please use the Form below.

Information Request Form:

Send us your comment or question and let us know how to contact you.

Name
E-mail (check for accuracy)
Phone
Cell phone
Fax
Model (identify item of interest)
Subject
Your Message
