High-power + high speed gearing for your project:

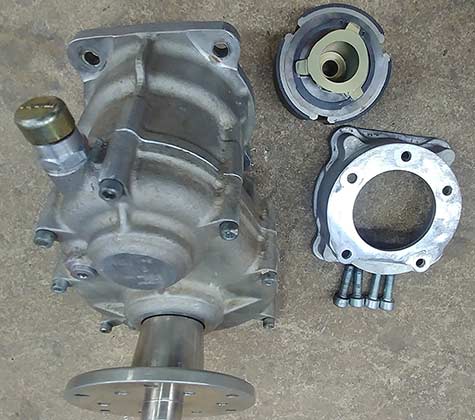

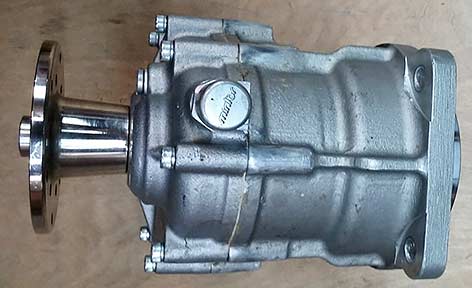

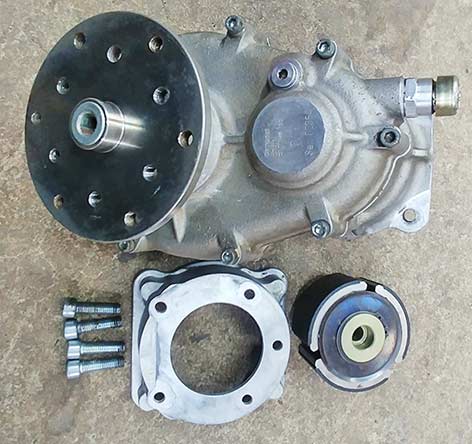

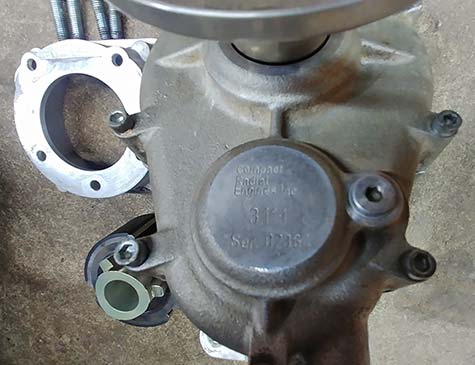

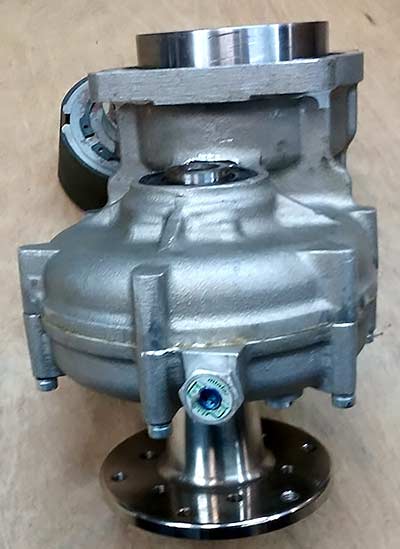

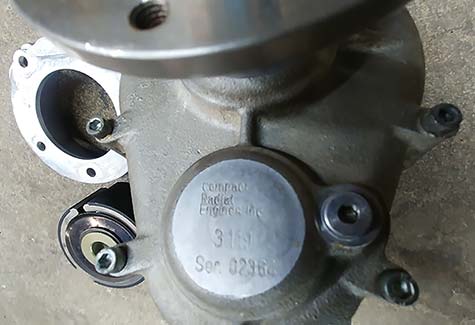

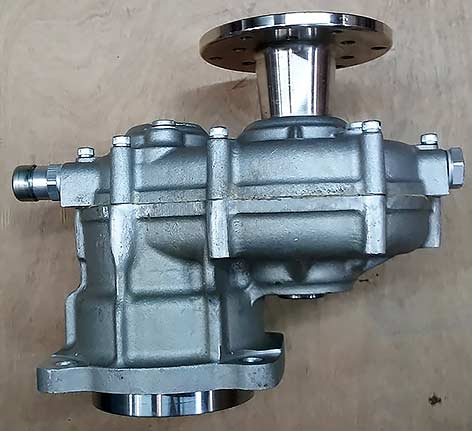

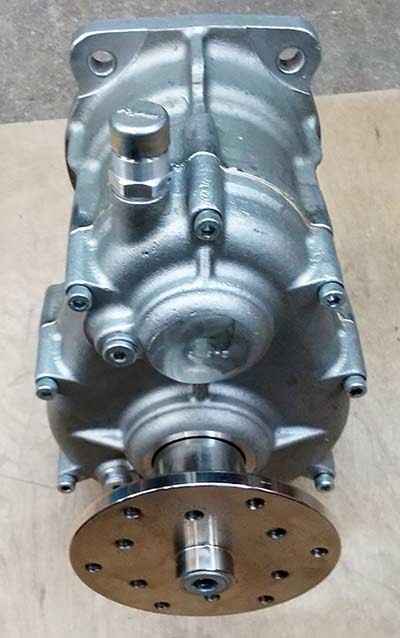

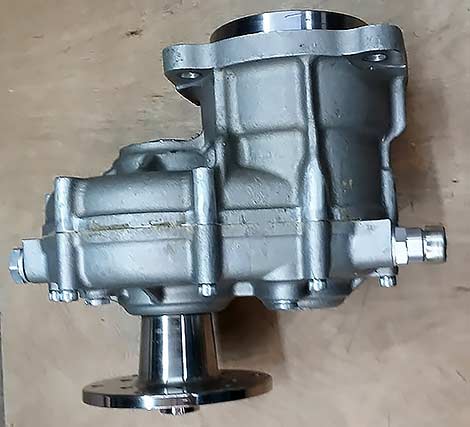

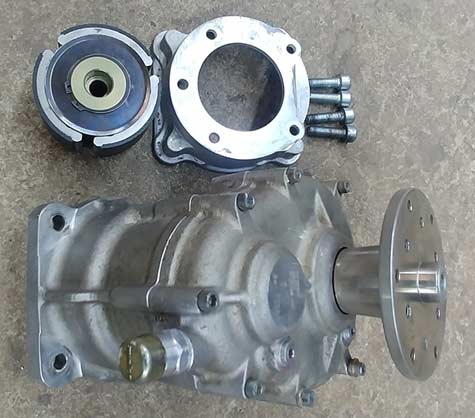

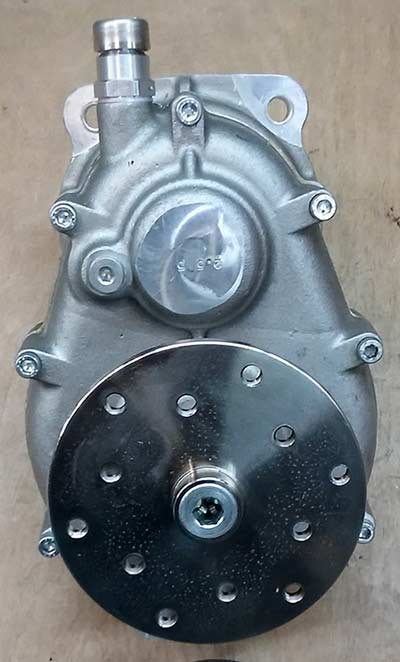

RZ-2 Gearbox +
Clutch with adapter plates for MZ202
• Mechanical Gear Reduction with helical gears supported by four
ball-bearing races. The output shaft in an isostatic
configuration with an oblique two-crown sphere bearing.

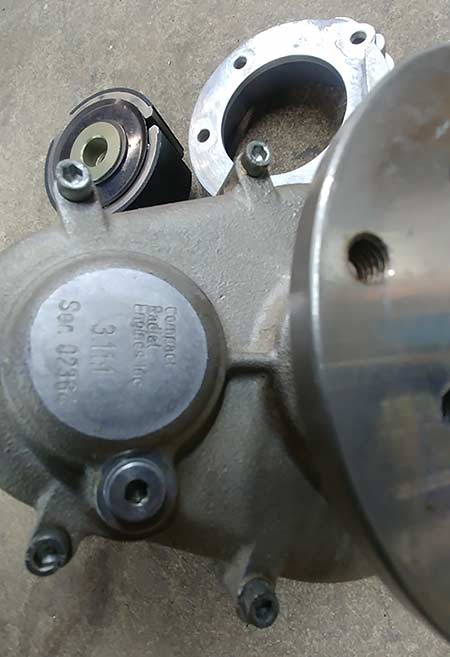

• Gear ratio 3.11:1

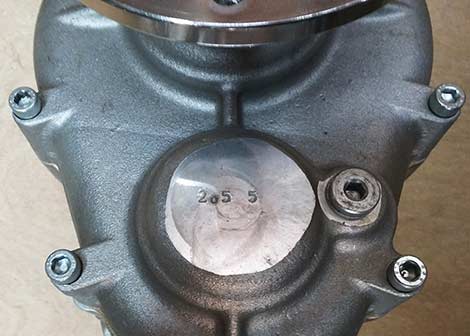

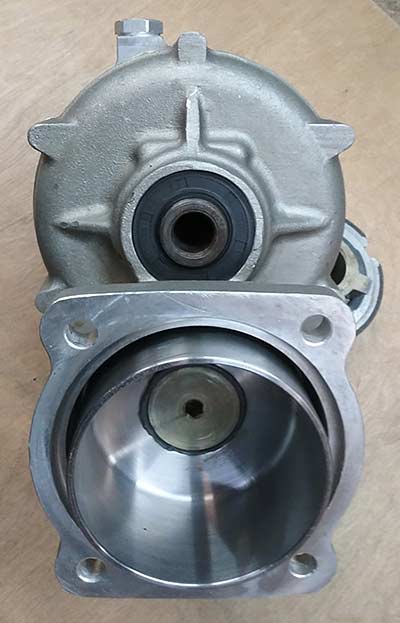

• The housing is cast alumium to T6 condition. Rated up to 130 hp
at 6500 rpm.
• Weight: 9kg (20 lbs).
• Clutch engages: 1900-2100 rpm.

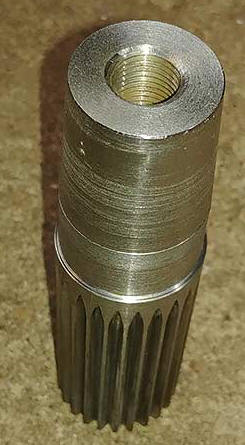

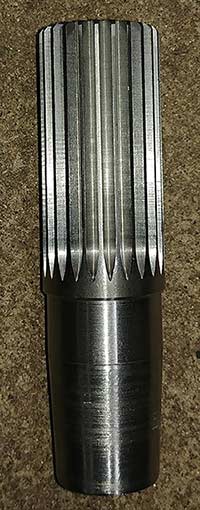

• Connection from clutch to primary gear through a grooved hub,
made from 7075-T6 with hard anodized surface.

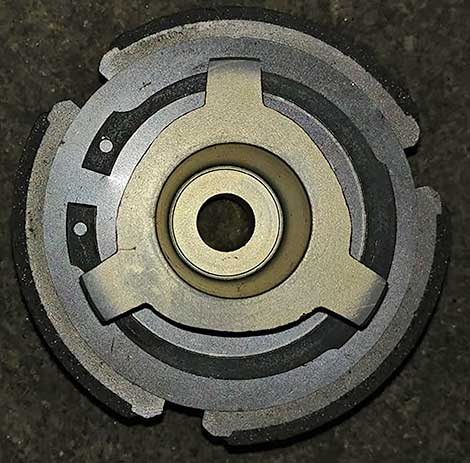

• Ergal mass centrifugal dragging hub with hard oxide

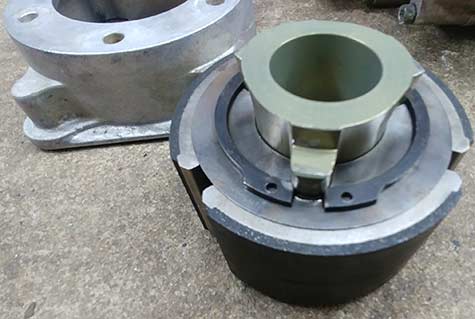

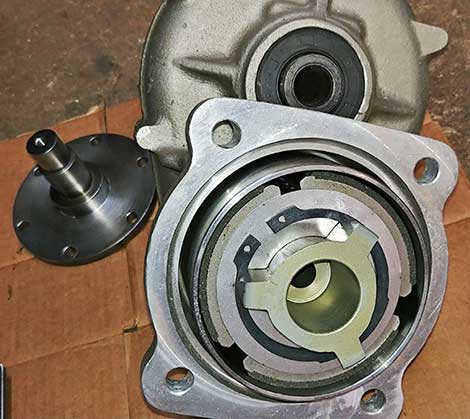

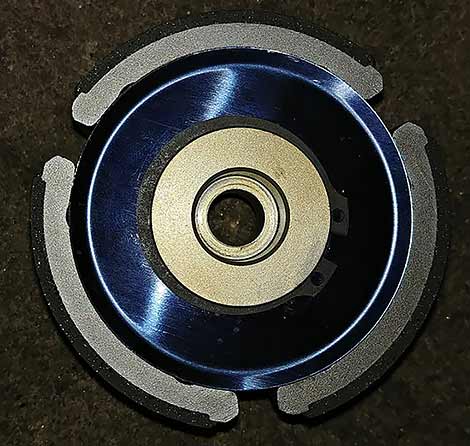

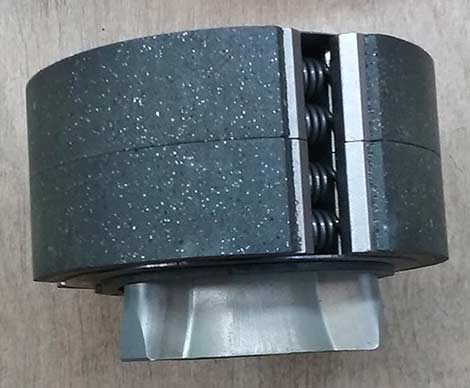

• Clutch shoes are of the sintered type with a bonded material
high friction coefficient.

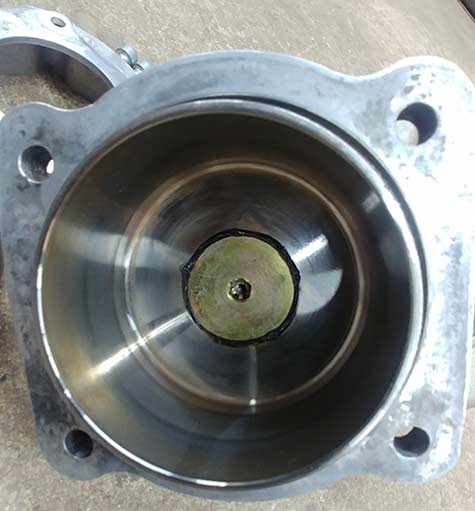

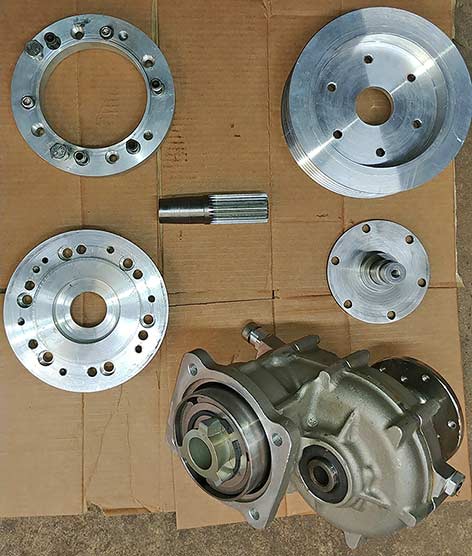

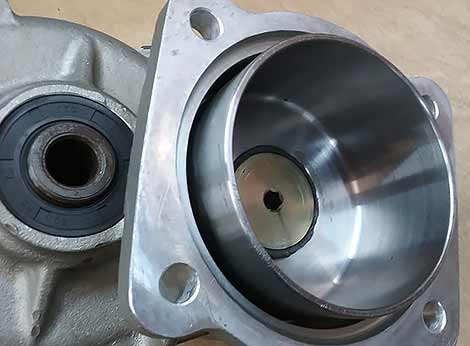

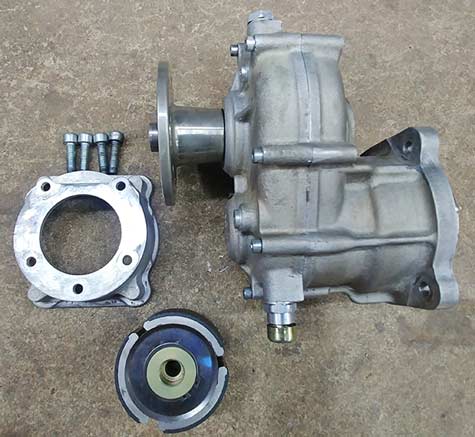

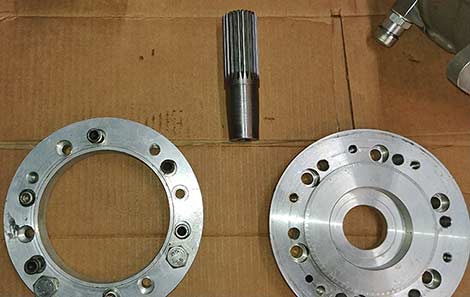

• Includes adapter plates to mount
to the MZ202 engines.

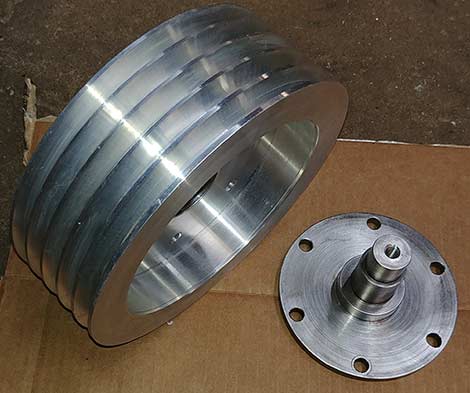

• Includes flange to mount the
This gearbox was
manufactured by Compact Radial Engines in North America.
